CE Scissor Wheelchair Lifter for Bus Hydraulic Wheelchair Lift
1. INTRODUCTIONWL-UVL-700II/WL-UVL-1300II/ WL-UVL-1600II-H wheelchair lift has been CE certified.The main function of this lift is to help the wheelchair to get into/get out of vehicle, and help wheelchair user to have a freedom movement.This lift has a super thin cassette, and it can be installed i......
Send Inquiry
Product Description
1. INTRODUCTION
WL-UVL-700II/WL-UVL-1300II/ WL-UVL-1600II-H wheelchair lift has been CE certified.
The main function of this lift is to help the wheelchair to get into/get out of vehicle, and help wheelchair user to have a freedom movement.
This lift has a super thin cassette, and it can be installed in vehicle luggage, so it doesn't take any room of vehicle.
Here are many safe equipment. The platform is anti-skip with safety side baffle, front rollstop and rear rollstop. Drive mode of front rollstop is electric, and drive mode of rear rollstop is automatic mechanical.
Lift power is supplied from electric-hydraulic system which is safety, stable, easy operated.
Loading capacity can be 300kg.
This lift is operated by remote control. Meanwhile, this lift can be operated manually for emergency.
2. ADVATANGES
Has super thin cassette;
Platform is anti-skip with side baffle, electric front rollstop and automatic mechanical rear rollstop;
Use self-lubricating bearings at main hinge joint points;
Surface treatment is powder painting with high level rust protection;
Full electric-hydraulic system which is safety, stable, easy operated;
Manual operation for emergency
Warning sound during working

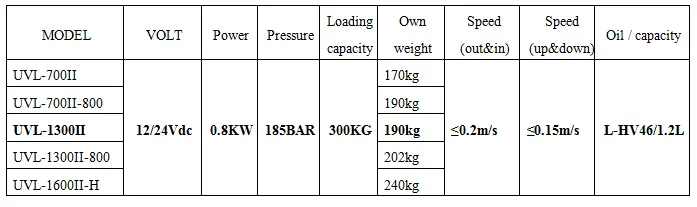

3. TECHNICALS

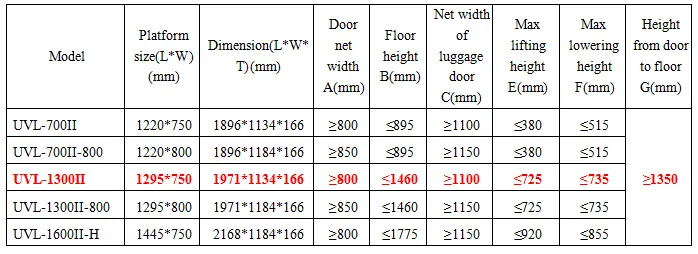

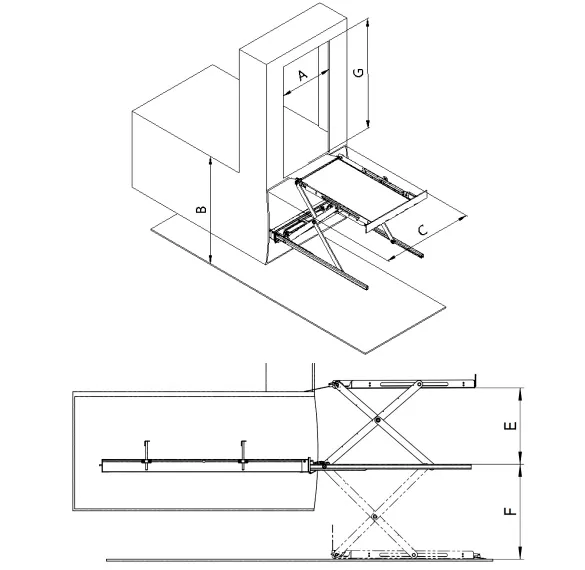

4. DIMENSIONS
WL-UVL-700II/WL-UVL-1300II/ WL-UVL-1600II-H wheelchair lift has been CE certified.
The main function of this lift is to help the wheelchair to get into/get out of vehicle, and help wheelchair user to have a freedom movement.
This lift has a super thin cassette, and it can be installed in vehicle luggage, so it doesn't take any room of vehicle.
Here are many safe equipment. The platform is anti-skip with safety side baffle, front rollstop and rear rollstop. Drive mode of front rollstop is electric, and drive mode of rear rollstop is automatic mechanical.
Lift power is supplied from electric-hydraulic system which is safety, stable, easy operated.
Loading capacity can be 300kg.
This lift is operated by remote control. Meanwhile, this lift can be operated manually for emergency.
2. ADVATANGES
Has super thin cassette;
Platform is anti-skip with side baffle, electric front rollstop and automatic mechanical rear rollstop;
Use self-lubricating bearings at main hinge joint points;
Surface treatment is powder painting with high level rust protection;
Full electric-hydraulic system which is safety, stable, easy operated;
Manual operation for emergency
Warning sound during working
3. TECHNICALS
4. DIMENSIONS
