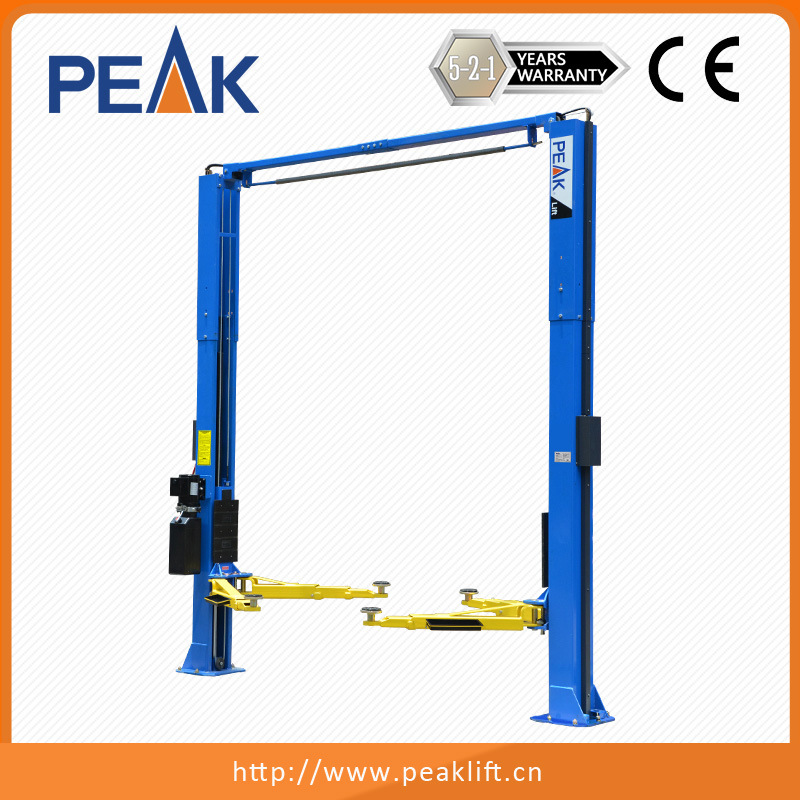

Super Symmetric Hydraulic Workshop Auto 2 Post Car Lift (209C)
209C Super Symmetric Hydraulic Post LiftFeature 9,000 Lbs Capacity Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals. 3/8" aircraft quality cable is used for synchronization. Supersymmetric arms design with three-stages front arms and two-stages rear arms. S......
Send Inquiry
Product Description

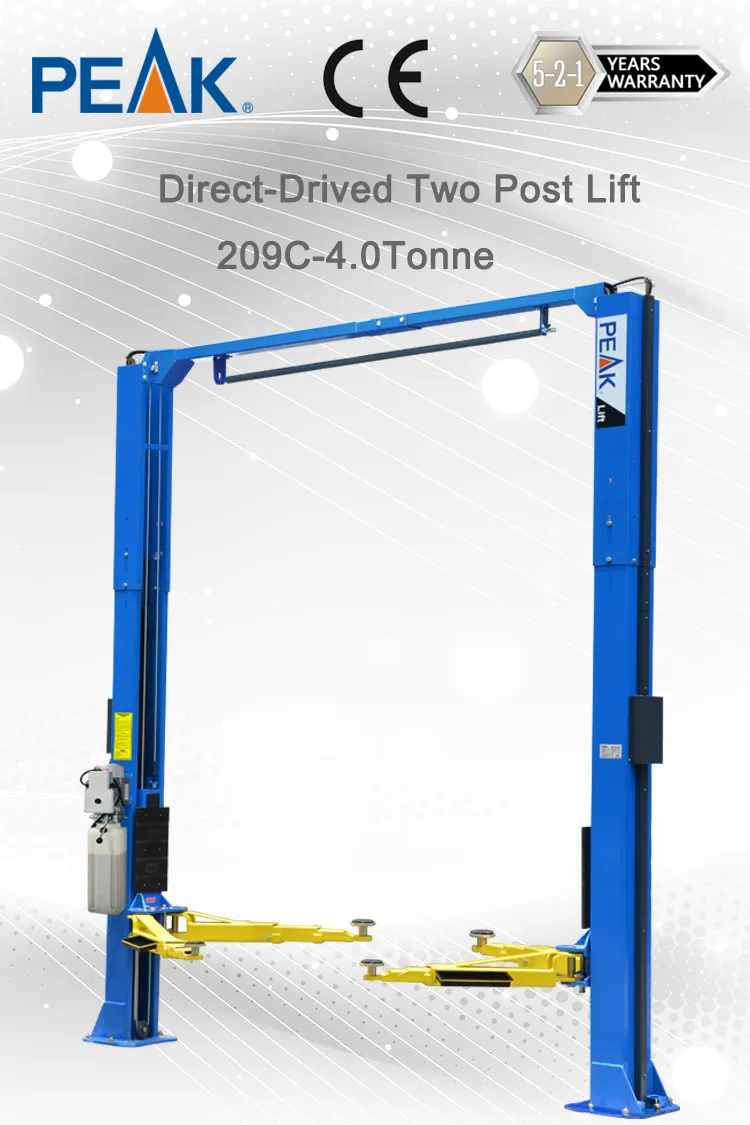

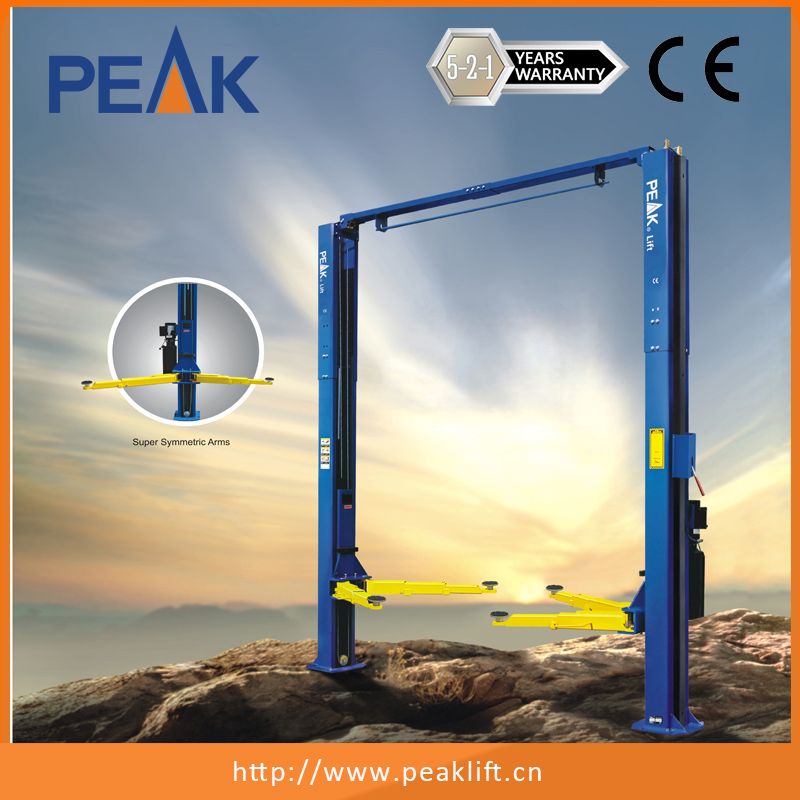

209C Super Symmetric Hydraulic Post Lift
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Supersymmetric arms design with three-stages front arms and two-stages rear arms.

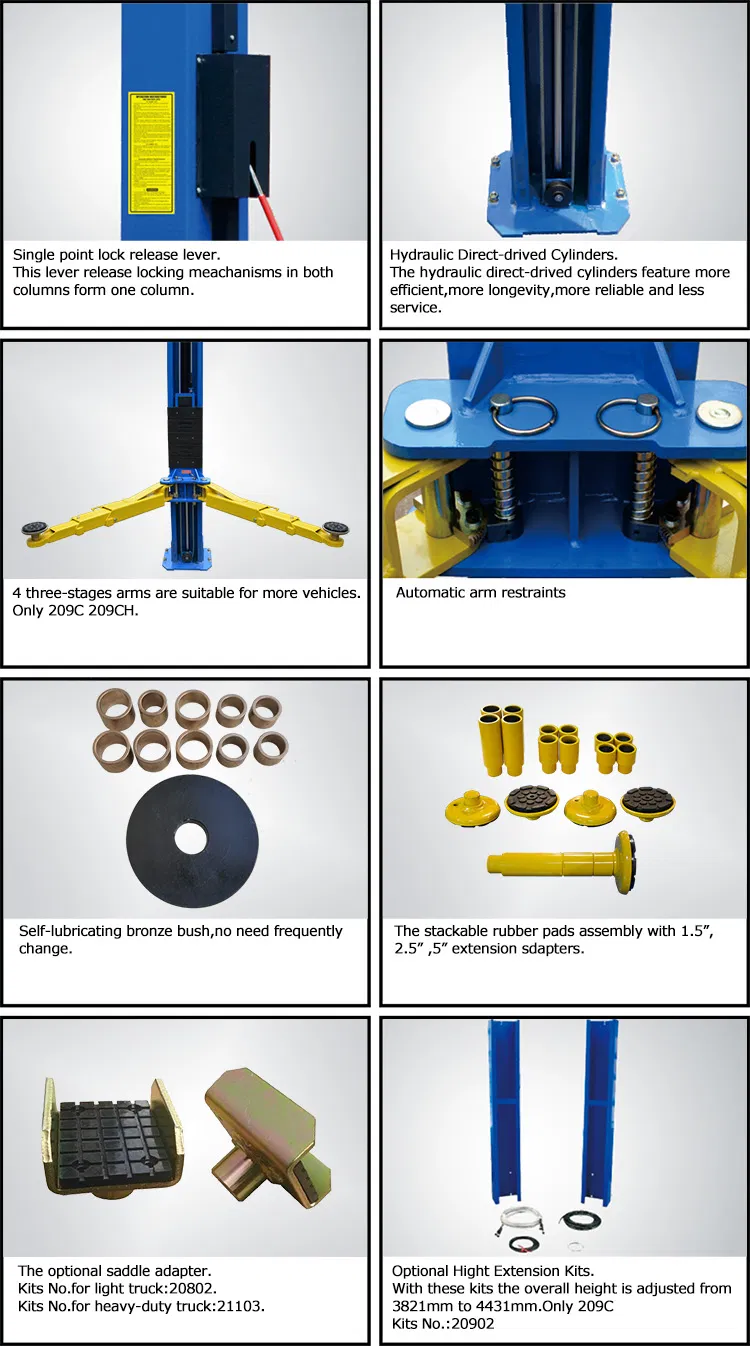

• Self-lubricating UHMW Polyethylene sliders and bronze bush.

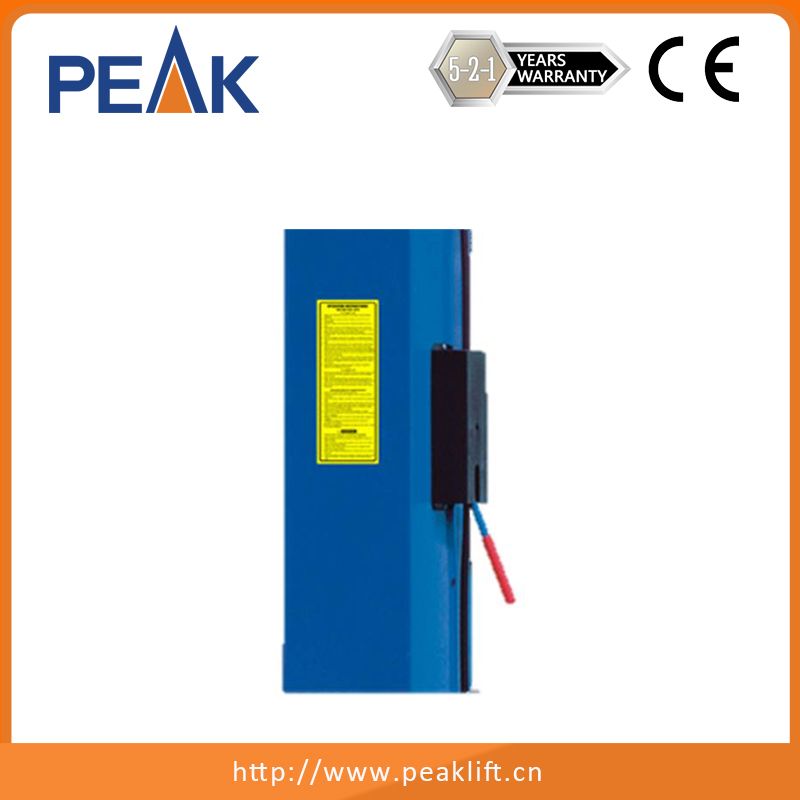

• Single-point safety release, and dual safety design.
• Clearfloor two post hoist design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.
• Automatic arms restraints.
• Hydraulic power unit.
209C Super Symmetric Hydraulic Post Lift
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor two post hoist design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.
• Automatic arms restraints.
• Hydraulic power unit.
209C Super Symmetric Hydraulic Post Lift

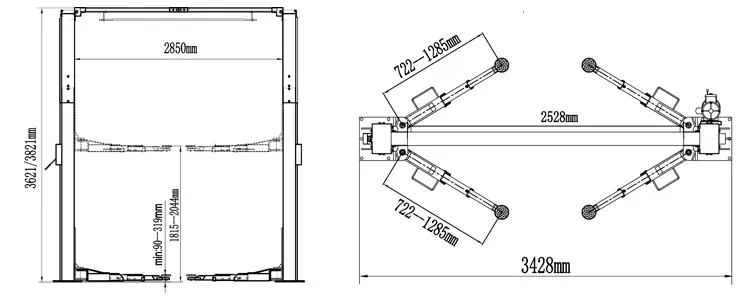

| Model | 209C | ||
| Style | 2 Post Car Lift Hydraulic | ||
| Lifting Capacity | 4.0T (9,000lbs) | ||
| Lifting Time | 57 Seconds | ||
| A | Lifting Height | 1815-2044mm (71 1/2" - 80 1/2") | |
| B | Overall Height | 3621mm/3821(141 1/2" / 150 1/2") | |
| C | Overall Width | 3428mm(135") | |
| D | Drive-Thru Clearance | 2528mm(99 1/2") | |
| E | Width Between Columns | 2850mm(112 1/4") | |
| F | Minimum Pad Height | 90mm(3 1/2") | |
| Gross Weight | 697kg(1,536lbs) | ||
| Motor | 2.0/3.0HP | ||
| Packing Dimension | 2815 X 450 X 755 mm | ||
| QTY of Container | 25 Units/20'GP | ||
| 50 Units/40'GP | |||
