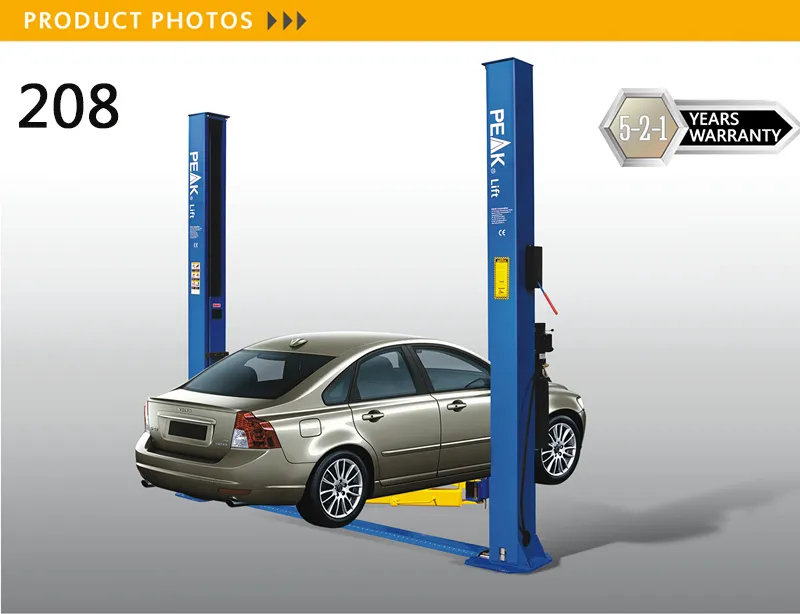

China Supplier Double Safety Locks 2 Post Automotive Elevator (208)

Product Description

208 China Supplier Double Safety Locks 2 Post Automotive Elevator

PEAK's Series of 2 Post Lift for Chain-Drived

Model	Lifting Capacity
208C	3.5T (8,000 lbs)
208	3.5T (8,000 lbs)
209	4.0T (9,000 lbs)
209X	4.0T (9,000 lbs)

* "C" is Clearfloor style.
* 209X is stronger, wider and higher than 209 in construction.

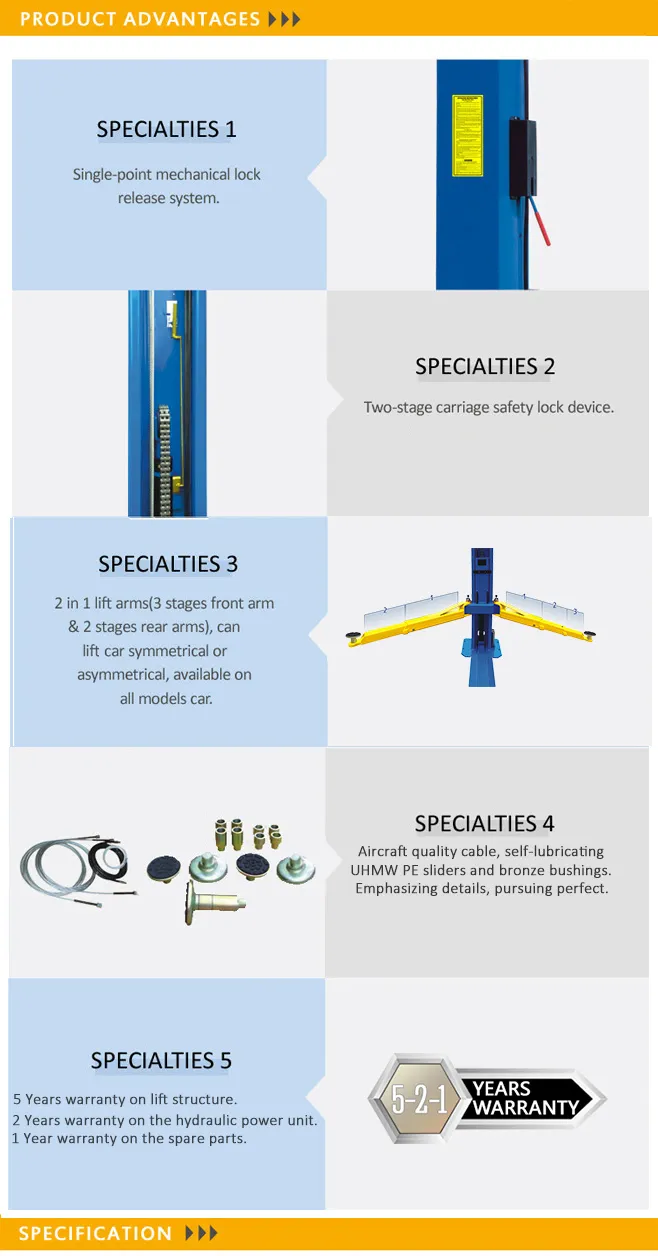

Feature
• 8,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 5/16" aircraft quality cable is used for synchronization.
• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5" and 2.5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).

China Supplier Double Safety Locks 2 Post Automotive Elevator (208)

208 China Supplier Double Safety Locks 2 Post Automotive Elevator

Model		208
Style		Thin Plate Type Chain-drived
Lifting Capacity		3.5T (8,000lbs)
Lifting Time		45 Seconds
A	Lifting Height	1815-1930mm (71 1/2" - 75")
B	Overall Height	2850mm(112 1/4")
C	Overall Width	3390mm(133 1/2")
D	Drive-Thru Clearance	2554mm(100 1/2")
E	Width Between Columns	2780mm(109 1/2")
F	Minimum Pad Height	90mm(3 1/2")
Gross Weight		590kg(1,300lbs)
Motor		2.0/3.0HP
Packing Dimension		2900 X 450 X 750 mm
QTY of Container		25 Units/20'GP
QTY of Container		50 Units/40'GP
